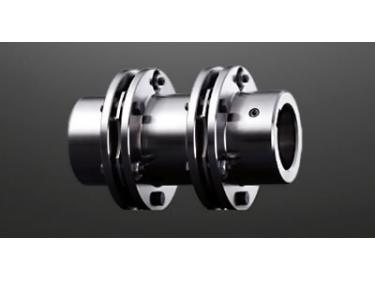

RADEX®-N NANA 3 (API 610)
Product characteristics
• Double-cardanic design
• High misalignment capability with low restoring forces
• Design acc. to API 610
• Standard spacer available from stock
• Applications:
- pumps
- compressors

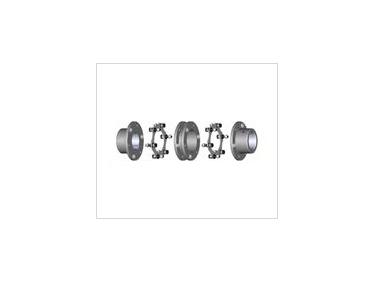

Click on image to enlarge
Additional Information
Laminae packings with dowel screws
The „heart“ of the steel laminae coupling are the laminae packings and their connection to the hubs or spacers.
High-strength, special dowel screws that are alternately screwed with hubs and spacer enable a combination of frictional engagement and positive locking. Thus a high power density with simultaneous easy displacement and low restoring forces is guaranteed.
Due to the special constructive design of the RADEX®-N components the laminae packings are „artificially“ prestressed. Hereby the torsional rigidity of approx. 30 % is enabled and at the same time the known problem regarding the axial vibrations of the spacer is avoided.

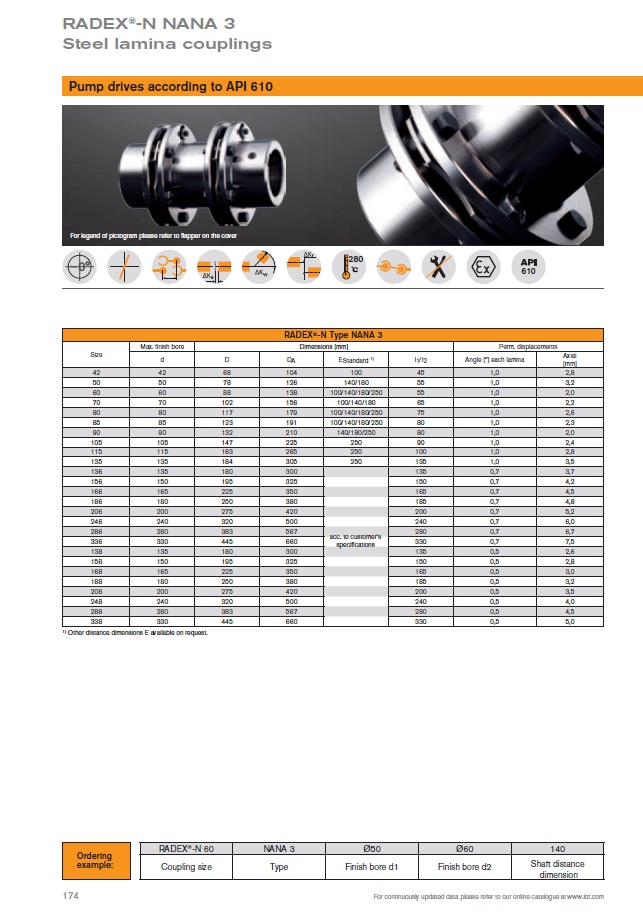

Dimensions
