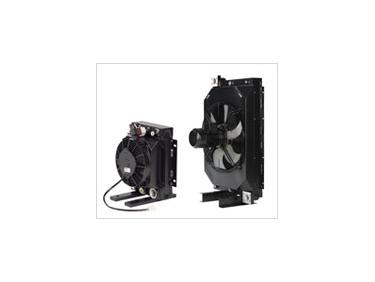

Oil/air cooler OAC

Product characteristics
• High-performance cooler net for a maximum static operating pressure of 26 bar in aluminium (Al)
• Suitable for hydraulic oil, gear lubricant oil, lubricating oil, motor oil and water-glycine
• Fan drive in 12 V, 24 V, 230 V/400 V and hydraulic drive
• Easy maintenance and good options for cleaning
• Low sound pressure level
• CE certification
• OAC with KTL Coating
• The special dipping paint allows to protect those areas of the cooler which are difficult to access
• The coolers are supplied with a special electric motor of protection class IP56
• The extra protection coating does not have any effect on the efficiency of the cooler
Click on image to enlarge

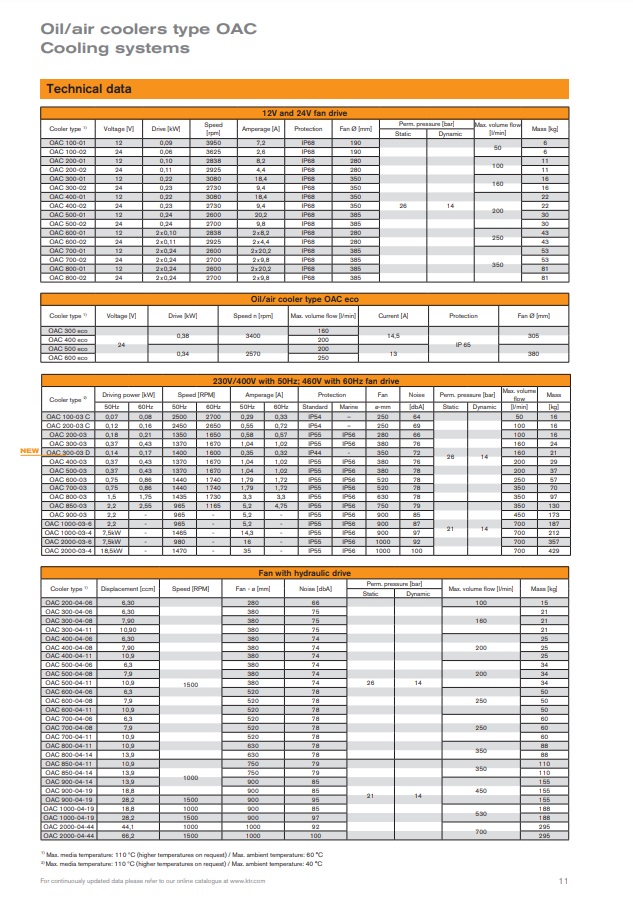

Technical Data

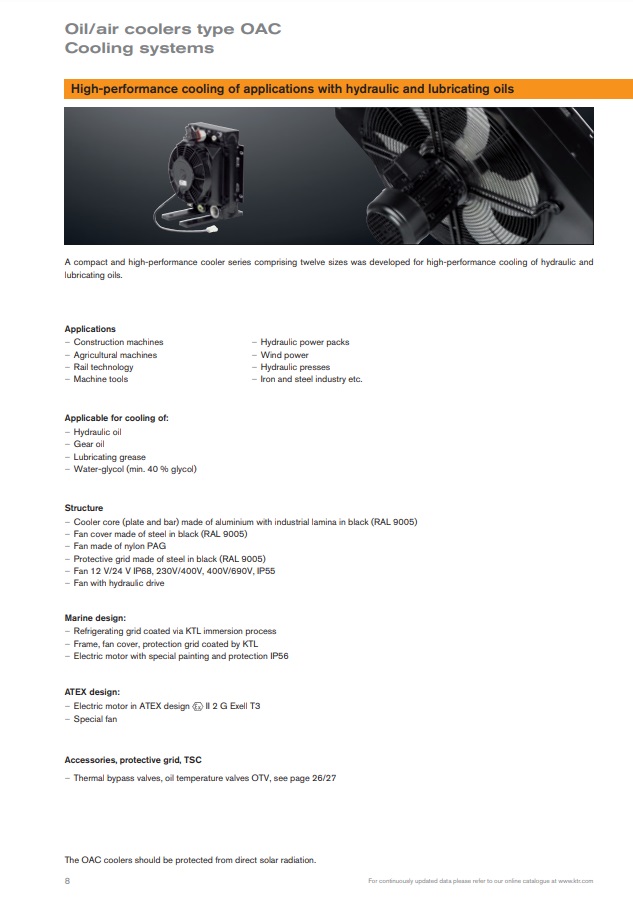

Additional Information
