Type M

Product characteristics
• Flexible metal bellow coupling
• Torsionally-stiff power transmission
• Compensation for axial, radial and angular displacements
• Non-positive bellow-hub connection
• Temperature up to +200°C
• Bellow with six shafts for high displacements
• Torques from 1 to 600 Nm

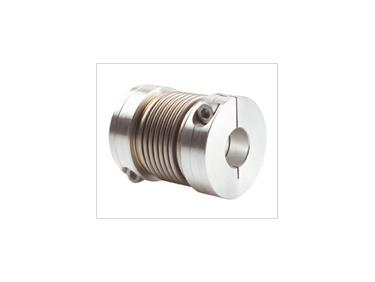

Coupling description
TOOLFLEX® is a torsionally stiff, flexible metal bellow coupling with a bellow from stainless steel and coupling hubs from aluminium (in size 55 and 65 as well as with type KN the coupling hubs are from steel). The metal bellow compensates perfectly for axial, radial and angular displacements. At the same time its geometric shape allows for high torsional stiffness and a low mass moment of inertia.

In addition it is resistant to media influences and critical operating conditions. For different applications and assemblies the TOOLFLEX offers various hub designs as well as two different bellow lengths. The combination of these single parts forms one type.

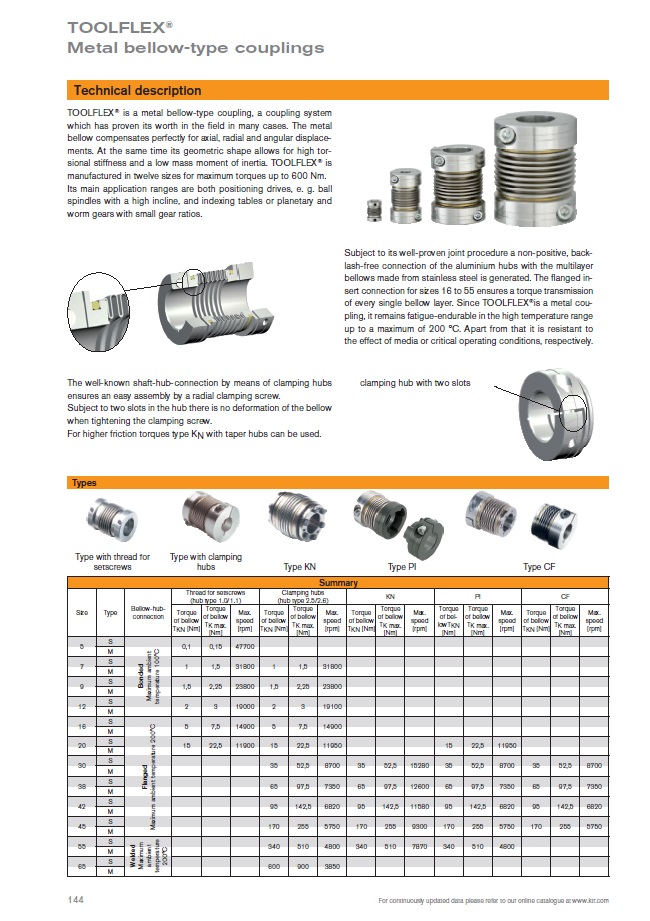

Click on image to enlarge

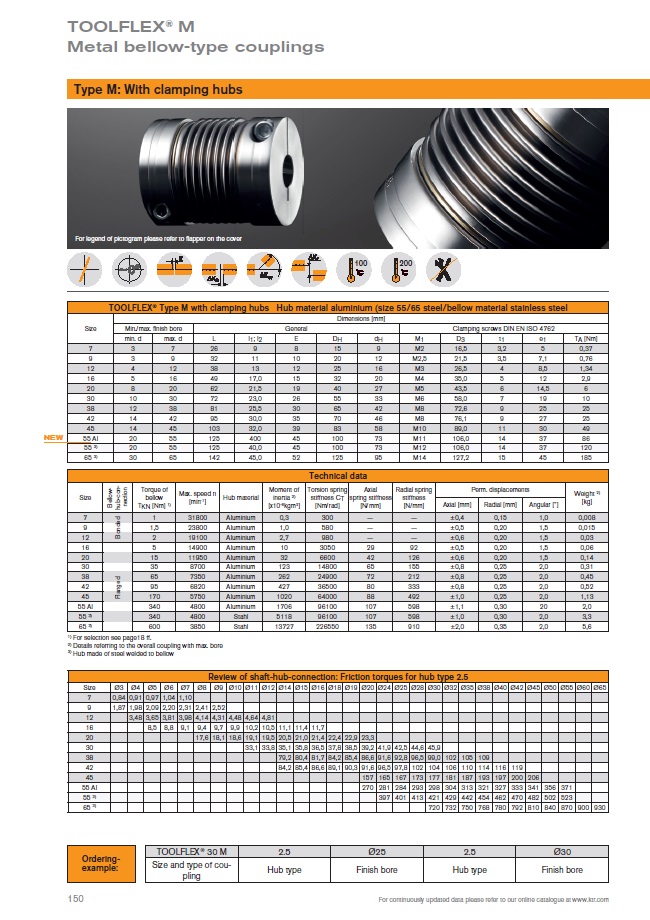

Technical Data
