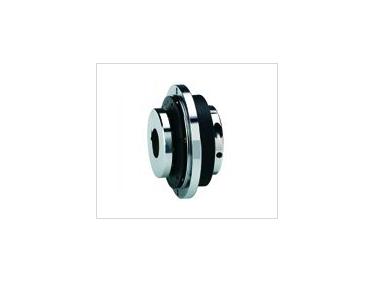

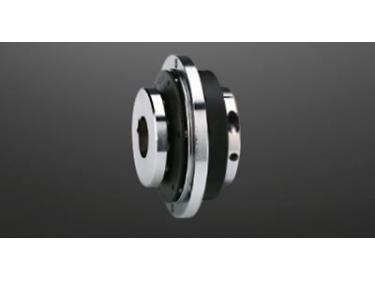

SYNTEX® Standard
Product characteristics
• Overload system in flange design up to 400 Nm
• Backlash-free and torsionally-stiff
• Available both as ratchet and synchronous design
• Disconnection of drive possible by means of end switch or sensor
Click on image to enlarge

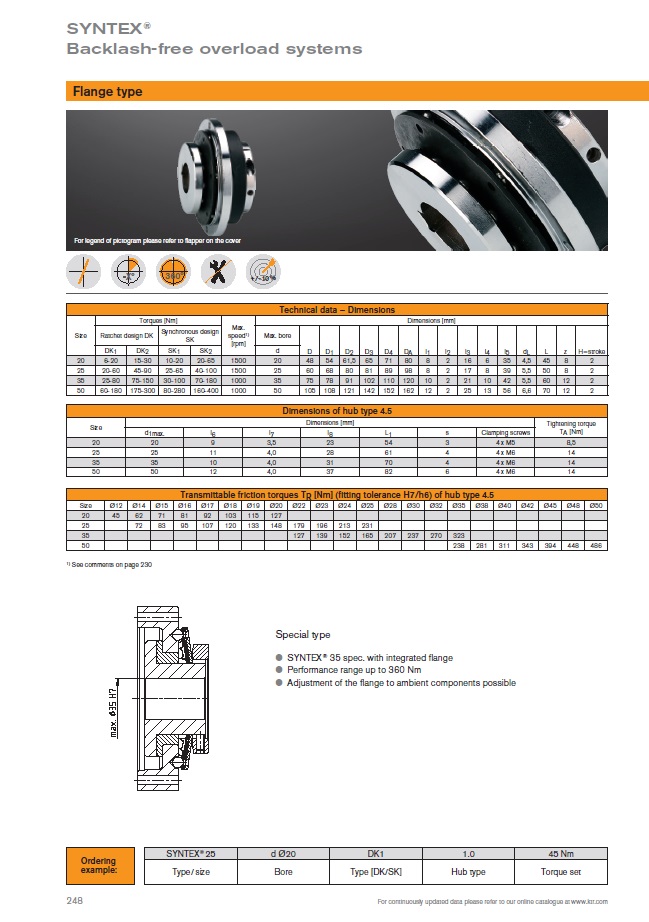

Dimensions
Operation/Arrangement
Punched disk spring
SYNTEX® is an overload system with positive operation.
The punched disk spring serves as the component for torque transmission (registered patent).
Ratchet design DK
If the torque set is exceeded, there is a relative movement between the driving and driven side. The transmittable torque is decreased to a minimum.
The balls leave the indentations of the disk springs. After eliminating the overload, the balls engage automatically with the next following ball indentation of the disk springs.
Synchronous design SK
If the torque set is exceeded, there is a relative movement between the driving and driven side. The transmittable torque is decreased to a minimum.
The balls leave the indentations of the disk springs. After eliminating the overload, the balls re-engage automatically with the disk springs after a rotation of 360°. Driving and driven side are always placed in the same position to each other (other degrees of re-engagement, for example 180°, are also possible).
