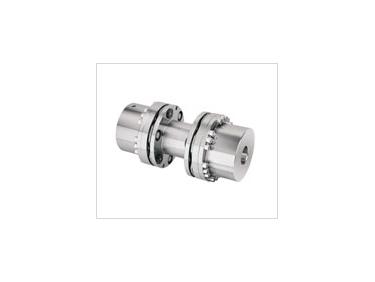

RIGIFLEX® -N
Product characteristics
• Backlash-free, torsionally stiff and maintenance-free steel lamina coupling
• Wear-free
• High displacement figures
• Nominal torque up to 280,000 Nm
• Operating range up to 280° C
• Double-cardanic design
• Standard range up to shaft diameter 400 mm
Coupling description
RIGIFLEX®-N couplings are used on such applications which require a reliable and maintenance-free torque
transmission with shaft displacement at the same time.
RIGIFLEX®-N was developed for pump drives in particular. This coupling system corresponds to the regulations
of API 610 and may be supplied in accordance with API 671 optionally. (API = American Petroleum Institute)
Torques from 240 Nm to 280.000 Nm are available in 15 sizes for an optimum adjustment to the different applications.
Click on image to enlarge
API 610 and API 671
RIGIFLEX®-N corresponds to the specifications of the API 610 standard
and can optionally be supplied in accordance with the API 671 standard.
RIGIFLEX®-N is designed for average and heavy operating conditions in the
pump industry. It is used on process pumps, boiler feed pumps,
pipeline pumps of chemistry and petrochemistry.
RIGIFLEX®-N is furthermore suitable for applications in the marine and
compressor industry.

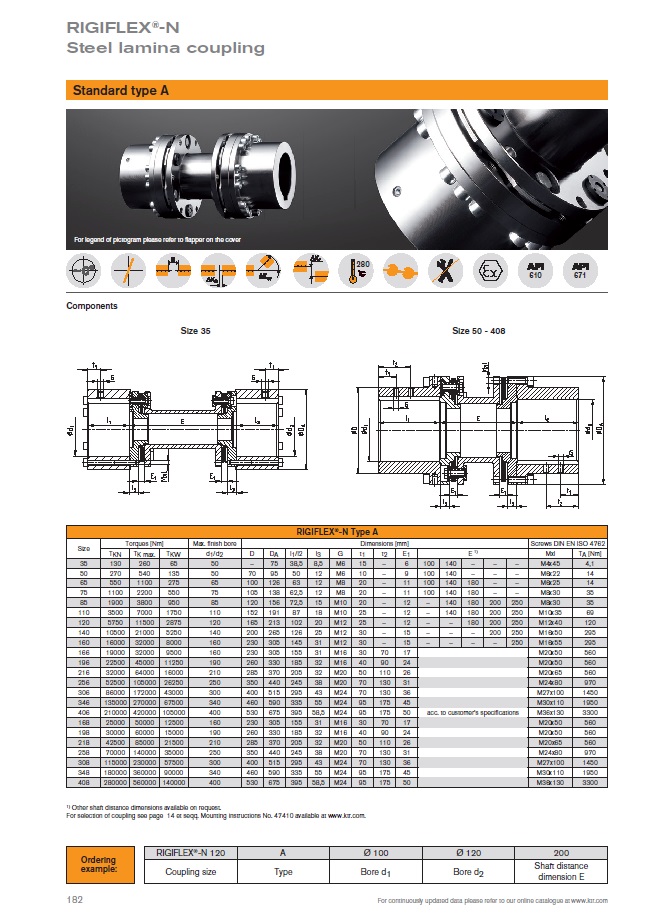

Dimensions
.jpg)
