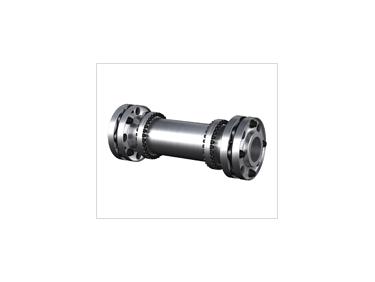

RIGIFLEX® -HP C
Product characteristics
• High-performance steel lamina coupling for high-speed and demanding drives
• Compact type C with high power density
• Torques up to 330,000 Nm
• Spacer to be assembled/disassembled radially
• Low-ventilation type
• Variable spacer lengths (DBSE)
• Torsional stiffness optimised for individual applications
• In accordance with API 671
Coupling description
RIGIFLEX®-HP is available as a compact type C with a high power density and type L for larger shaft diameters.
Thanks to variable lengths, the spacer mounted by the manufacturer allows for an individual adaptation to each of the
drive trains concerned. Both types are characterized by low ventilation and benefi t from an easy assembly. Apart
from that they are in accordance with the standards API 671 of the American Petroleum Institute which means that
they are permissible, among others, for an international application in petro-chemistry.

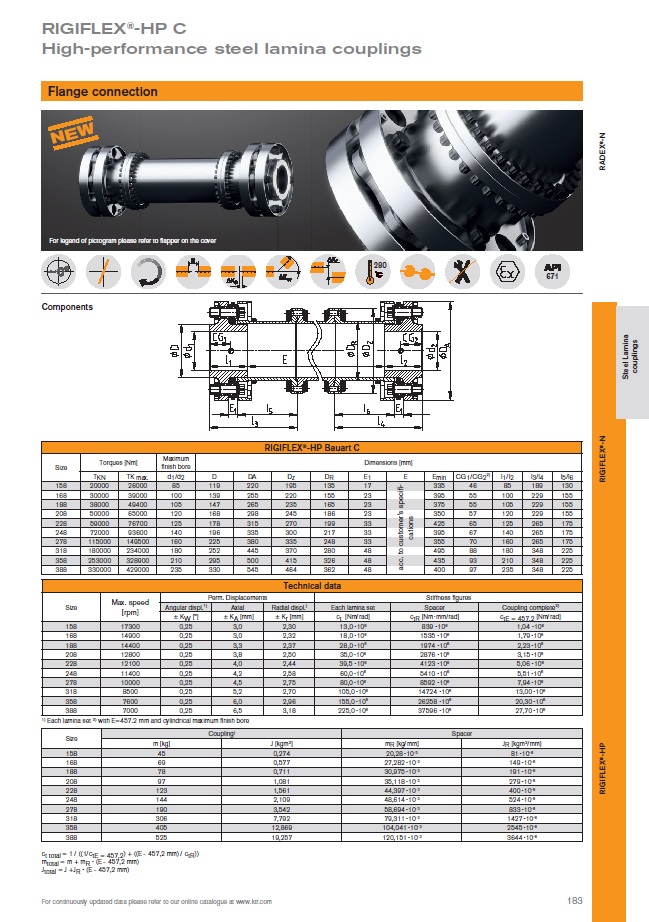

Click on image to enlarge
API 610 and API 671
The RIGIFLEX®-HP corresponds to the specifications of the API 671 standard. The RIGIFLEX®-HP is designed for the use in high-performance applications in particular. This coupling type is especially used in high-speed drive trains that need to be customized regarding torsional stiffness and mass distribution to meet the requirements of the whole system. Typical application areas of the RIGIFLEX®-HP are:
Turbo compressors
High-speed pump drives
Generator drives
Turbine drives
Dimensions
