• Technically complex design
• Split housing with bolted-on covers
• Advanced cover design for high misalignment capacity
• Misalignment capacity of ± 1.5° per coupling half, for special designs up to ± 3°
• Optionally available for oil or grease lubrication
• Low strain on seal rings due to optimum arrangement in the sleeve cover
• Large lubricant space in leak-proof design
• Lubrication is ensured, even with damaged seal ring
• Easy replacement of seal rings
• Tooth tip centered, optionally available with cover centering
• Large tooth center distance
• Combinable with HYGUARD® safety couplings, brake disks, torque metering shafts or other accessory equipment.

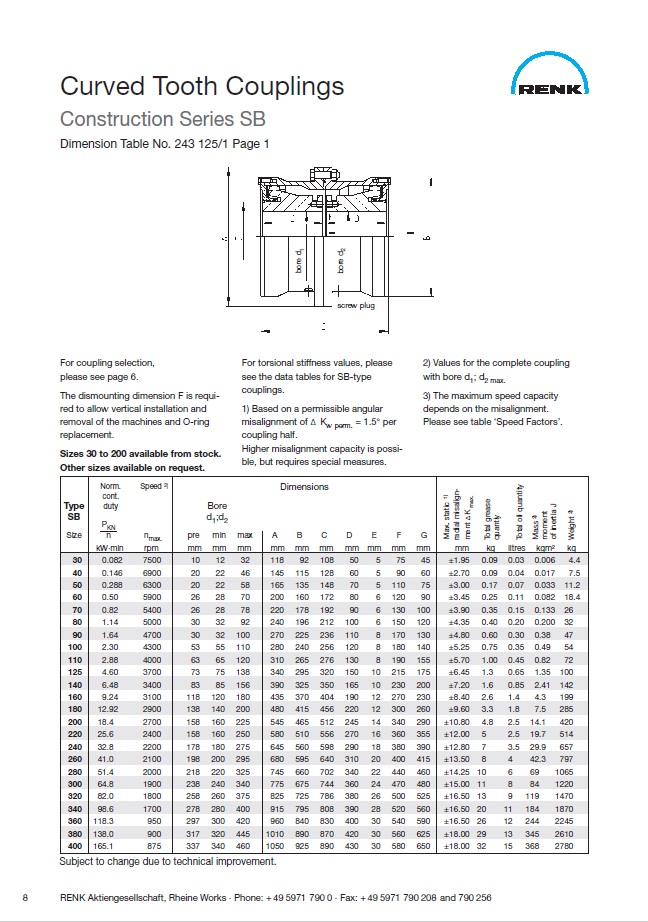

Click on image to enlarge
