RENK Side flange-mounted bearings type EF

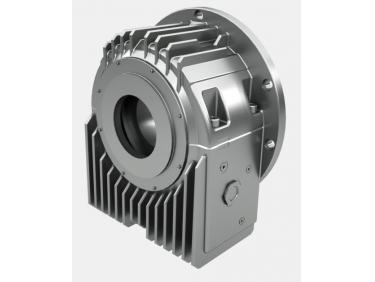

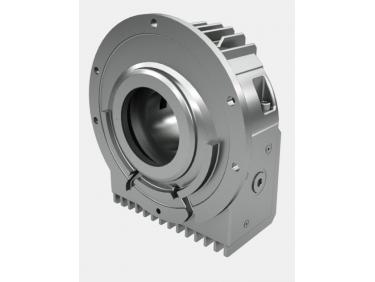

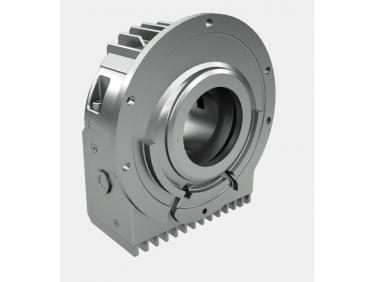

The EF type is especially suitable for electric machines which do not have their own bearing foundations or the alignment work that goes with them.



• Lower noise levels in comparison to rolling bearings and resistant to loads caused by shocks thanks to low material stresses

• Maintenance-free or low-maintenance and easy to install

• Lubricant film dampens vibrations, impacts, and noise

• Resistant to penetration of dust and shocks

Slide bearings:
• require a small radial installation space and are structurally adaptable (can be integrated as component)

• are suitable for very high speeds

• exhibit practically no wear during fully hydrodynamic continuous operation and with hydrostatic bearings

• are most cost-effective than rolling bearings at large dimensions
Click on image to enlarge

Dimensions

Additional Information

Bearing Housing

The finned EF-type housings are made from a high-quality cast iron (EN-GJL-300) and are designed for heavy duty performance. Other materials such as, for instance, nodular cast iron EN-GJS-400-15 or cast steel GS 45 can be supplied by special arrangement.

Bearing Shell

The shells are spherically seated in the housing. They consist of a supporting steel body lined with lead based RENKmetal therm 89/V6.
Both design and manufacture are in accordance with the highest standards required in heavy engineering: trouble- free assembly and long life even under severe operating conditions.

EF-type bearings are mostly equipped with shells with plain cylindrical bore and lubricating oil ring. Shells are available either for self-contained operation (E.NL.) or prepared for external oil circulation (E.ZL.)

Technical Data

Design:
 		  EF bearing
Construction:
 		  Finned side flange-mounted bearing acc. to DIN 31693 / ISO 11687-2
Size:
 		  9 … 28, for shafts Ø 80 … 355 mm
 35 … 45, for shafts Ø 300 … 560 mm (600 mm)
Lubrication:  Self-lubricating (loose oil ring, fixed oil ring) or external lubrication
Cooling system:   Natural cooling, water cooling, or external cooling
Bore design:
 		  Various bore designs as required, e.g. cylindrical bore, two-lobe bore, four-lobe bore, or radial tilting pad
Options:  Electric insulation, lubrication circulation system, hydrostatic jacking
Accessories:  Temperature monitoring with PT100, prepped for vibration/speed sensors
