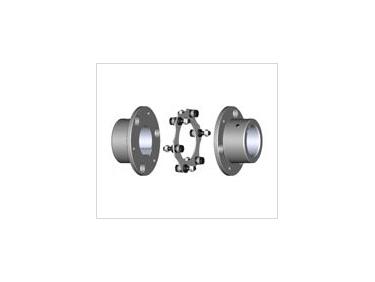

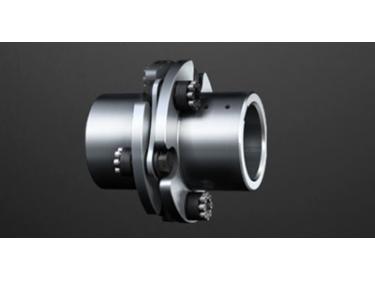

RADEX®-N NN
Product characteristics
• Single cardanic design
• Only angular and axial misalignment permitted
• High torsional stiffness
• Compact design
• Application areas
• Mixers
• Agitators
• Immersion pumps
• Fans
• Applications with high radial load
Click on image to enlarge
Additional Information
The „heart“ of the steel laminae coupling are the laminae packings and their connection to the hubs or spacers.
High-strength, special dowel screw that are alternately screwed with hubs and spacer enable a combination of
frictional engagement and positive locking. Thus a high power density with simultaneous easy displacement and
low restoring forces is guaranteed.
Due to the special constructive design of the RADEX®-N components the laminae packings are „artificially“ prestressed.
Hereby the torsional rigidity of approx. 30 % is enabled and at the same time the known problem regarding the axial
vibrations of the spacer is avoided.

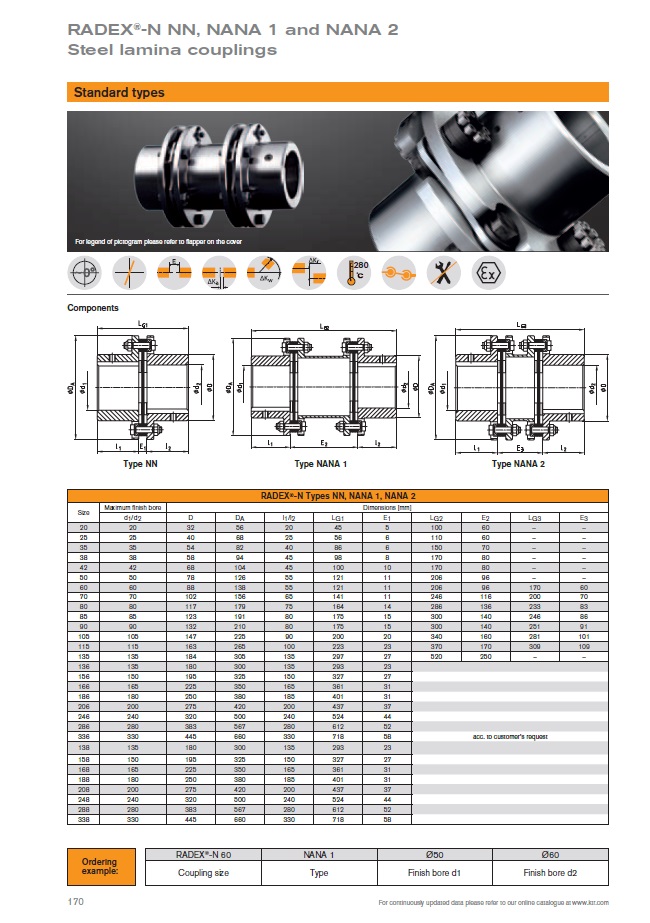

Dimensions
