POLY-NORM® -AR (2 Piece)
Product characteristics
Shaft coupling for torque transmission and damping of torsional vibrations
Axial plug-in - easy assembly - maintenance free
Particularly small mounting length - for small shaft distance dimensions
Operative range from - 30 °C to + 80 °C peak temperature of up to + 120ºC
Compensation for axial, radial and angular shaft misalignments
Use in general machinery
Explosion protection rated and confirmed acc. to EG Directive 94/0/EG
Coupling description
The POLY-NORM® coupling is a torsionally flexible, shear type shaft coupling. It has an axial plug-in design with a
unique short over all length. The POLY-NORM® can be used in nearly all types of machinery and is ideal for the pump
industry.
The POLY-NORM® coupling compensates for shaft misalignment of all kinds and safely transmits the torque.

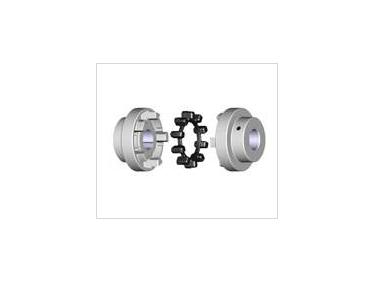

Click on image to enlarge

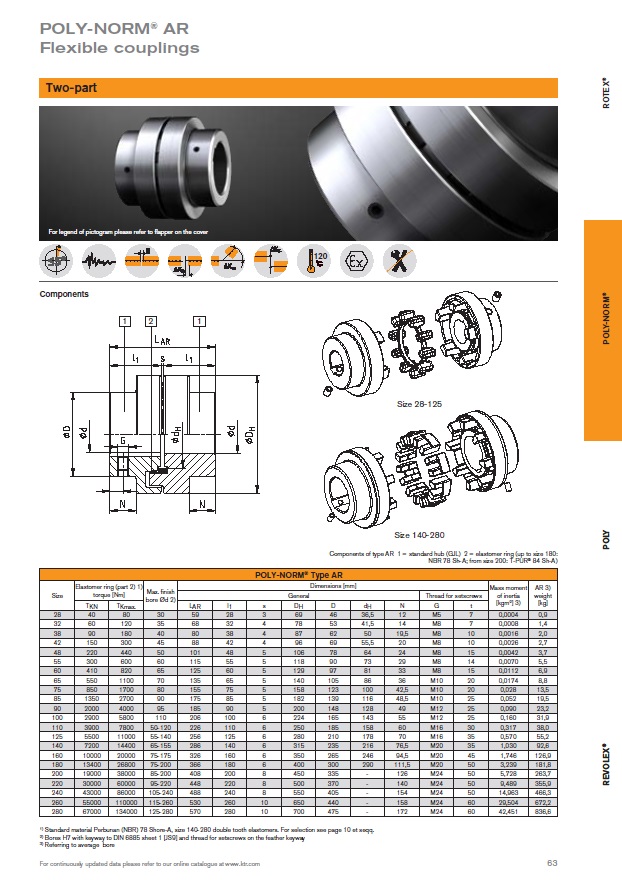

Dimensions
