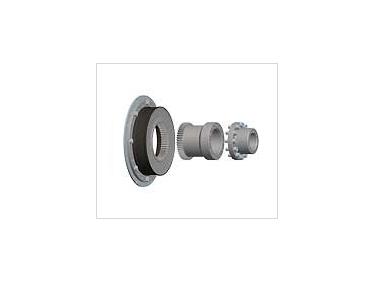

HE-ZS/HEW-ZS
Product characteristics
• Highly flexible coupling to be mounted to combustion
• engines and electric motors
• Elastomer parts available as hardness 40, 50 and 65 Shore A
• High degree of compensation of errors in alignment
• Type HE-ZS with flange connection according to SAE-J 620 and removable part for pump drives
• HEW-ZS for shaft to shaft connection
• Finish bore according to ISO fit H7, feather key according to DIN 6885 sheet 1 (JS9)
Click on image to enlarge

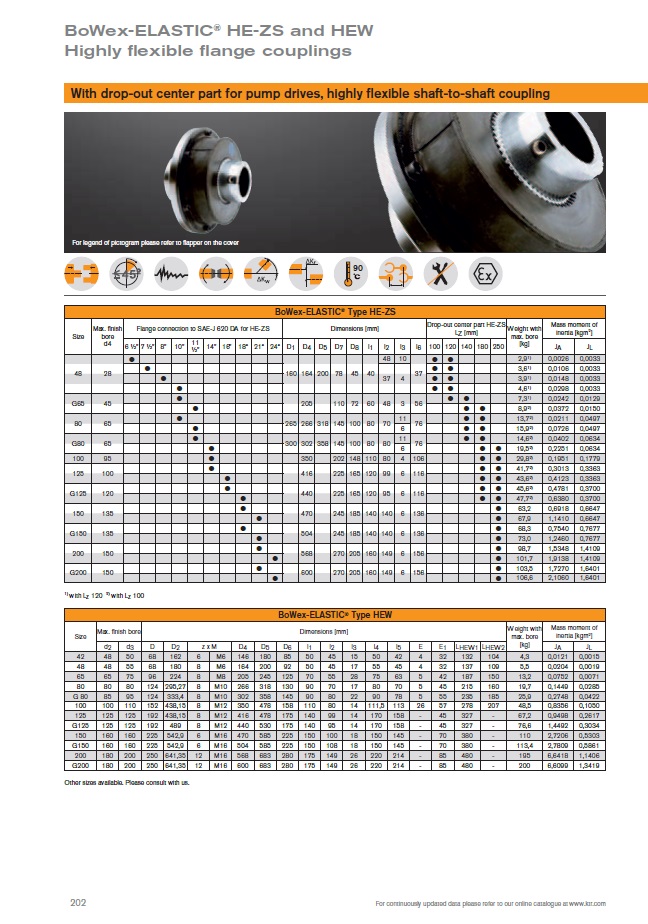

Dimensions
