BoWex® -M

Product charcteristics
• Double cardanic curved-tooth gear coupling
• For all applications in the range of machinery and hydraulics
• Maintenance-free due to material combination nylon / steel
• Compensation for shaft misalignment axial - radial - angular
• Axial plug-in - easy assembly
• Available with finish bore according to ISO fit H7
• Feather keyway according to DIN6885 page 1 - JS9
• Taper and inch bores for hydraulic pumps

Coupling description
BoWex® Curved-tooth gear couplings® are flexible shaft connections for a positive torque transmission and
specifically suitable to compensate for axial, radial and angular shaft misalignment.
According to the well-known effect of curved-tooth gear couplings any edge pressure in the spline in case of
angular and radial displacements is avoided so that BoWex couplings are almost free from wear.

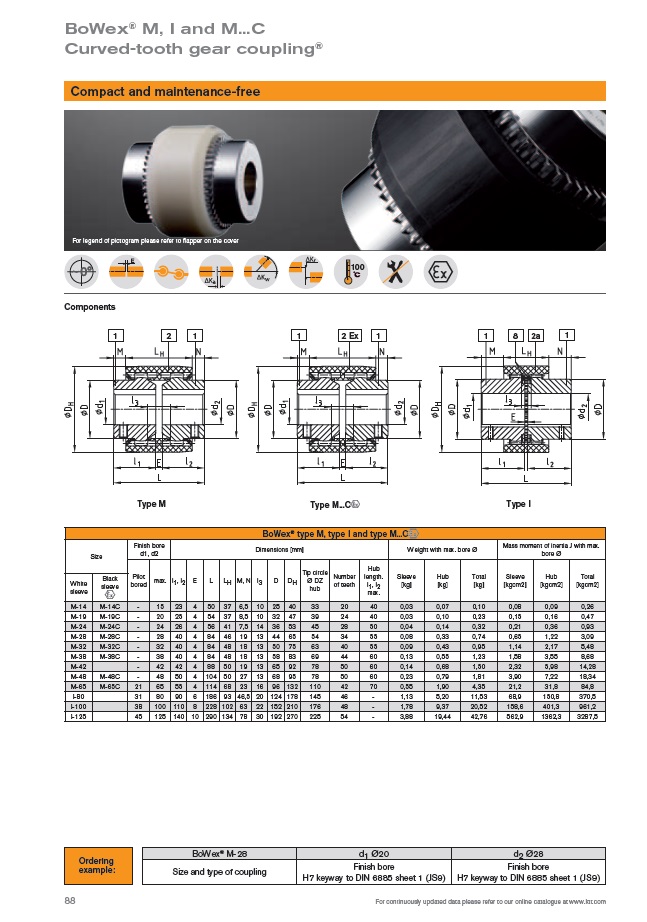

Click on image to enlarge

Additional Information

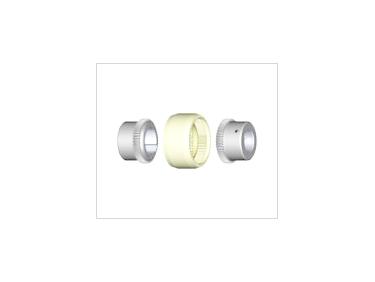

The material combination of steel hubs and polyamide sleeves allows for maintenance-free continuous operation
with very low friction on the teeth.
Due to the double cardanic operation of BoWex® couplings restoring forces may be neglected in case of angular
and radial displacements and periodic fluctuations in angular velocity do not arise.
BoWex® couplings can be assembled both vertically or horizontally with no need for any special assembly tools.
